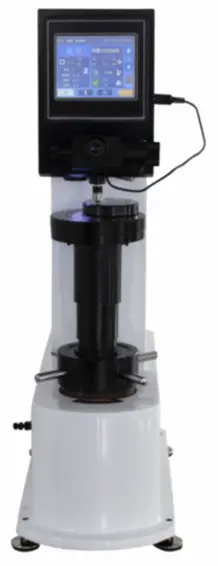

Digital Brinell Hardness Tester (VB-3000AT)
VB-3000AT
Overview
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Specifications
| Model | VB-3000AT |
|---|---|
| Turret | Automatic turret |
| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500 HBW10/1000, HBW10/1500, HBW10/3000 |
| Load Kgf(N) | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Microscope magnification | 20X |
| Min measuring unit | 0.125Ξm |
| Dwell time | 1-60s |
| Hardness range | 8-650HBW |
| Data output | Touch screen display |
| Test space | 200*135mm(H*D) |
| Power supply | AC220+5%,50~60Hz |
| Size & Weight | 550*210*750mm, 130kg |
| Executive Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 |
Features
- Large test force range: 62.5Kgf to 3000Kgf
- With 10 kinds of measurement scale
- Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
- Measuring indentation automatically, no need to focus
- Hardness value display on screen, and with hardness conversion function
- One-time casting machine body with car painting design, structure more stable and looking more beautiful
- Digital eyepiece with built-in encoder, just click the encoder button indentation length will input to machine automatically, and machine automatically calculate the hardness value.
- Large test space: 135mm Depth
- Touch screen interface, menu structure interface, more information display
- Modular design, easy maintenance
- Low noise test process, suitable work at in research labs, school, Industrial plant, etc.
